China Factory Price LV series Silicone Laryngeal mask LSR Injection Molding Machine

Product Categories
Guangzhou Juchuan Machinery Co., Ltd.
Contact Now

China Factory Price LV series Silicone Laryngeal mask LSR Injection Molding Machine

Place of Origin : Guangdong, China

Brand Name : JuChuan

Certification : CE ISO9001

Packaging Details : shrink film packing

Supply Ability : 1000 Set/Sets per Month LSR machine

Price : $43,000.00 - $58,000.00/sets

Model Number : JC-LV-1

MOQ : 1set

Payment Terms : L/C, T/T, Western Union

Delivery Time : 45 days

Condition : New

Style : VERTICAL

Clamping Force : 100~300Ton

Type : LSR Injection Molding Machine

Automatic : Yes

After-sales Service Provided : Engineers available to service machinery overseas

Plastic Type : Other

Injection Weight : 300~500cc

Injection Rate : 30g/s

Opening Stroke : 300~350mm

Power : 11~20Kw

Biggest injection rate : 180~210cc/s

Injection Pressure(kfg/cm2) : 750 kfg/cm2

Injection volume(cc) : 300~500

Screw diameter(mm) : 45,50,55

Motor capacity(kw) : 11~20

Gross Weight(Ton) : 6.3~11

Model : JC-LV

Port : Guangzhou

clamp force : 50-1000

injection volume : 500-4000

platen size : 300-700

plunger stroke : 300-500

mold opening type : 2RT3RT4RT

Gross weight : 5.5-10ton

injection pressure : 1800

opening mold : 2RT3RT4RT

Contact Now

China Factory Price LV series Silicone Laryngeal Mask LSR Injection Molding Machine

China Factory Price LV series Silicone Laryngeal mask LSR Injection Molding Machine

LV Series Liquid Silicone Injection Molding Machine

Features:

  1. Reciprocal vertical Liquid Molding (LIM) system with Independent Intellectual Property Rights.
  2. Ingenious Injection cylinder mechanism for material loading/unloading, extending machine's working life and durability.
  3. Unique pneumatic injection shut-off/sealing nozzle mechanism.
  4. Highly accurate vertical dispensing system, achieving up to 0.15% accuracy.
  5. Three working stations with double plate design for improved efficiency.
  6. Suitable for electric insulator parts, various LSR containers, oil seals, automotive parts, and more.

Model 100LV-1 200LV-1 300LV-1
Clamping Force (Ton) 100 200 300
Max. Injection Rate (cc/s) 300 300 400
Injection Pressure (kgf/cm²) 1000 1000 1200
Injection Volume (cc) 2000 3000 5000
Platen Size (mm) 400*400 550*560 700*700
Plunger Diameter (mm) Φ250 Φ360 Φ450
Plunger Stroke (mm) 350 400 600
Min. Mold Thickness (mm) 51 110 110
Heating Plates Distance (mm) 300-400 500-600 600-700
Mold Opening Type 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die
Max. Operating Pressure (Mpa) 20 20 20
Heating Power (KW) 10 15.3 24
Gross Weight (Ton) 6 7.3 11
Machine Size L*W*H (mm) 2400*1650*3200 2600*2000*4000 2750*2265*4200

Product show

China Factory Price LV series Silicone Laryngeal mask LSR Injection Molding Machine

Application

China Factory Price LV series Silicone Laryngeal mask LSR Injection Molding MachineChina Factory Price LV series Silicone Laryngeal mask LSR Injection Molding Machine

Related Products

China Factory Price LV series Silicone Laryngeal mask LSR Injection Molding Machine

China Factory Price LV series Silicone Laryngeal mask LSR Injection Molding Machine China Factory Price LV series Silicone Laryngeal mask LSR Injection Molding Machine

China Factory Price LV series Silicone Laryngeal mask LSR Injection Molding Machine

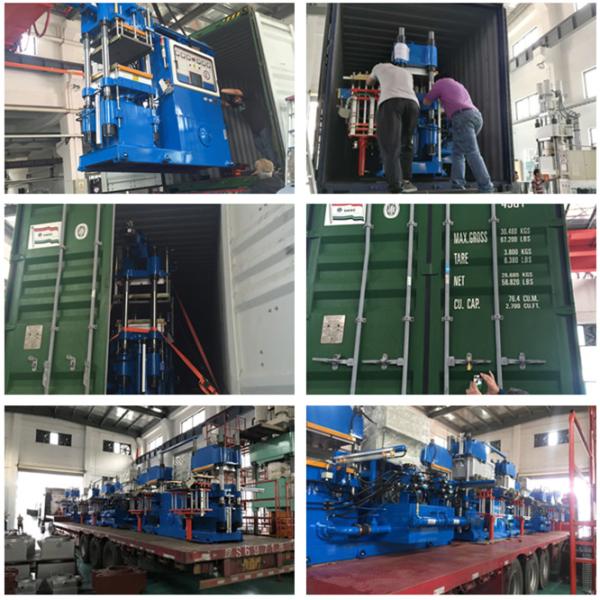

Packaging & Shipping

Shipping and packing

China Factory Price LV series Silicone Laryngeal mask LSR Injection Molding Machine

Company information

* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.

* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.

* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.

Our main products

Silicone rubber injection molding machine

Vertical hydraulic rubber injection machine

Horizontal silicone rubber injection machine

Liquid silicone injection molding machine

Vacuum compression machine

Silicone rubber hot press machine

Trade Show

China Factory Price LV series Silicone Laryngeal mask LSR Injection Molding Machine

Our service

1. Free technology training: you can come for inspection and training for free.

2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.

3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)

4. Online remote control for software problems, whatspp or wechat for video checking.

China Factory Price LV series Silicone Laryngeal mask LSR Injection Molding Machine
