China Factory Price Hot Press Moulding Machine/ Vulcanizing Press Molding Machine For Making Keyboard

Name: China Factory Price Hot Press Moulding Machine Vulcanizing Press Molding Machine For Making Keyboard
Brand: JuChuan
Price: 15 USD

Wholesale China Factory Price Hot Press Moulding Machine/ Vulcanizing Press Molding Machine For Making Keyboard from china suppliers

Place of Origin : Guangdong, China

Model Number : JC-HF1

Brand Name : JuChuan

Certification : ISO9001

Supply Ability : 1000 Set/Month

Price : $15,000.00 - $40,000.00/sets

MOQ : 1set

Payment Terms : L/C, T/T, Western Union

Delivery Time : 45 days

Packaging Details : Fixed with hard straps

Condition : New

Style : VERTICAL

Injection Rate (g/s) : 100

Machine Type : Hydraulic

Injection Weight (g) : 200

Screw diameter (mm) : 30

Distance between Tie Bars : TBD

Weight (KG) : 7000

Type : Plate Vulcanizing Machine

Power (kW) : 15

Warranty : 1 Year

Key Selling Points : Competitive Price

Applicable Industries : Manufacturing Plant

Automatic : Yes

After-sales Service Provided : Video technical support, Online support, Engineers available to service machinery overseas

Clamping Force (kN) : 200

Gross Weight(Ton) : 5~28.5

Plunger Stroke(mm) : 200~350

Port : Guangzhou

Contact Now

Keypad Injection Moulding Machine/Injection Molding Machine For Making Keyboard

HF Series Vulcanizing Molding Machine For Two Sides Operation

Machine Feature

1.Able to assemble/install separate Ejection mechanism that suitable for bigger size molding part

2.Efficient production of rubber part for railway, mining, shipbuilding industries.

3. Multi-pillar plate vulcanizing machine.

4. Anti-collision Molding System prevent mold damage occurring from misalignment (Patented).

Model	Unit	100HF	160HF	200HF	250HF	300HF	400HF	500HF	1200HF
Clamping Force	Ton	100	160	200	250	300	400	500	1200
Operation table size	mm	400*460	500*520	550*560	650*600	700*800	850*850	1000*1000	1600*2200
Plunger stroke	mm	200	250	250	250	300	300	350	350
Distance of Thermo-plate	mm	200~300	250~350	250~350	250~350	300~400	300~400	350~450	350~550
Distance of Tie bar	mm	490*230	590*270	640*310	745*310	785*380	940*450	1105*475	6 posts
Die sinking type	Track-Suspension-2RT-3RT-4RT
Max Operating Pressure	Mpa	20	20	20	20	20	20	20	20
Motor Power	hp	7.52(5.5kw2)	102(7.5kw2)	102(7.5kw2)	102(7.5kw2)	102(7.5kw2)	152(11kw2)	15(11kw)	25(18.5kw)
Electric Heating Power	Kw	7.2*2	11.7*2	13.5*2	15.3*2	24*2	26.4*2	36	126
Total Power	Kw	25.4	38.4	42	45.6	63	74.8	47	144.5
Gross weight	Ton	5	6	7.8	11	15	17	13.5	28.5
*Dimension(LWH)*	mm	25002080 1950	28002260 1900	29302350 2050	31902780 2230	33602970 2250	36603050 2350	14603600 2380	23505400 2950

China Factory Price Hot Press Moulding Machine/ Vulcanizing Press Molding Machine For Making Keyboard

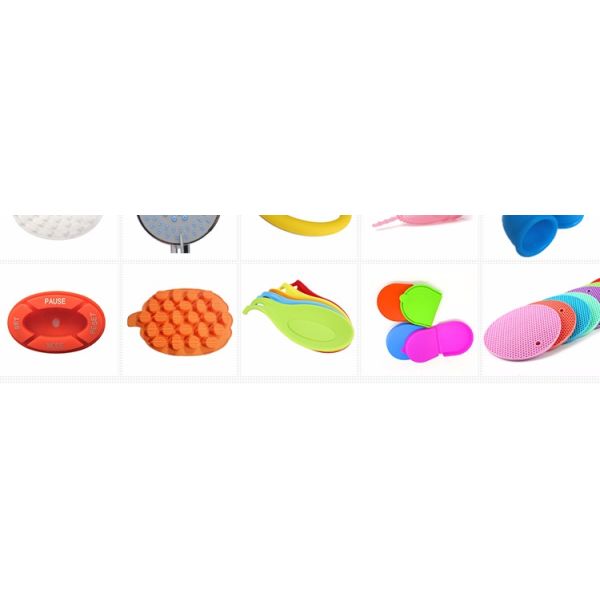

Application

China Factory Price Hot Press Moulding Machine/ Vulcanizing Press Molding Machine For Making Keyboard

Product Features

China Factory Price Hot Press Moulding Machine/ Vulcanizing Press Molding Machine For Making Keyboard

China Factory Price Hot Press Moulding Machine/ Vulcanizing Press Molding Machine For Making Keyboard Images
