Pop It Fidget Toy Making Machine/Silicon Making Machine/Hydraulic Hot Press Machine

Name: Pop It Fidget Toy Making MachineSilicon Making MachineHydraulic Hot Press Machine
Brand: JUCHUAN
Price: 20 USD

Wholesale Pop It Fidget Toy Making Machine/Silicon Making Machine/Hydraulic Hot Press Machine from china suppliers

Place of Origin : Guangdong, China

Brand Name : JUCHUAN

Packaging Details : shrink film packing

Supply Ability : 100 Unit/Month

Price : $20,000.00 - $46,800.00/sets

Model Number : JC-HF

Certification : ISO9001:2015

MOQ : 1set

Payment Terms : L/C, T/T, Western Union

Delivery Time : 45 days

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Motor, Pump

Machine Type : Plate Vulcanizing Press

Voltage : 220/380V

Dimension(L*W*H) : 2930*2350*2050mm

Weight : 7800

Warranty : 1 year

Key Selling Points : Easy to Operate

Showroom Location : None

Applicable Industries : Manufacturing Plant

Injection Pressure(kgf/xm2) : 2000

Plunger Stroke(mm) : 400~700

Heater Capacity(kw) : 30.3~150

Gross Weight(Ton) : 7.3~650

Model : HI-FL

Power(W) : 42kw

Keywords : Vulcanizing Machine

Quality : Excellent

Product name : hot press machine

After Warranty Service : Video technical support

Port : Guangzhou

Contact Now

Pop It Fidget Toy Making Machine/Silicon Making Machine/Hydraulic Hot Press Machine

Pop It Fidget Toy Making Machine/Silicon Making Machine/Hydraulic Hot Press Machine

Product Description

How to operate this machine?

Initial state →Put the material into the mould, repos it the ejector cylinder →Load the mould →Close the mould quickly→ Clamp the mould slowly, increase pressure →Exhaust→ Vulcanization start →Vulcanization finish→ Open mould quickly→ Pushing out the mould →Ejector cylinder works, and separate mould and product→ Take out the product

Technical parameter

Model	Unit	300HF	400HF	500HF	1200HF
Clamping Force	Ton	300	400	500	1200
Operation table size	mm	700*800	850*850	1000*1000	1600*2200
Plunger stroke	mm	300	300	350	350
Distance of	mm	300~400	300~400	350~450	350~550
Thermo-plate	mm	300~400	300~400	350~450	350~550
Distance of Tie bar	mm	785*380	940*450	1105*475	6 posts
Die sinking type	Track-Suspension-2RT-3RT-4RT
Max Operating	Mpa	20	20	20	20
Pressure	Mpa	20	20	20	20
Motor Power	hp	102(7.5kw2)	152(11kw2)	15(11kw)	25(18.5kw)
Electric Heating	Kw	24*2	26.4*2	36	126
Power	Kw	24*2	26.4*2	36	126
Total Power	Kw	63	74.8	47	144.5
Gross weight	Ton	15	17	13.5	28.5
Dimension(LWH)	mm	336029702250	366030502350	146036002380	235054002950

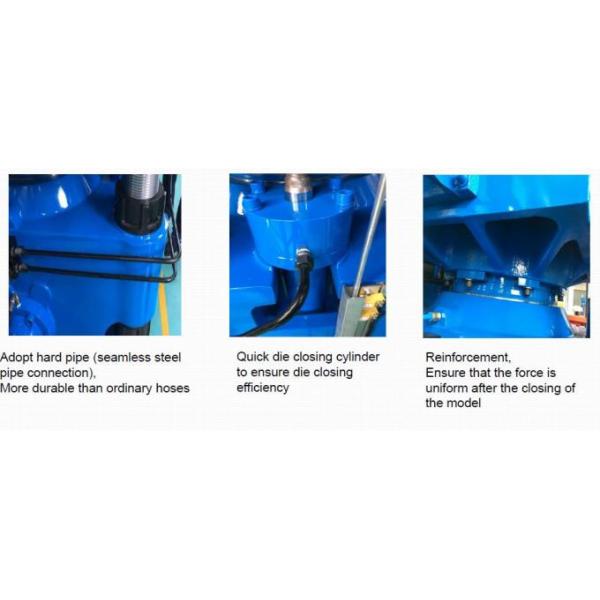

Detailed Images

Pop It Fidget Toy Making Machine/Silicon Making Machine/Hydraulic Hot Press Machine

Application Products

Pop It Fidget Toy Making Machine/Silicon Making Machine/Hydraulic Hot Press Machine

Our main products:

1.Silicone rubber injection molding machine,

2.Vertical hydraulic rubber injection machine,

3.Horizontal silicone rubber injection machine,

4.Liquid silicone injection molding machine,

5.Vacuum compression machine

6.Silicone rubber hot press machine.

Pop It Fidget Toy Making Machine/Silicon Making Machine/Hydraulic Hot Press Machine

Company Information

* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.

* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.

* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.

Pop It Fidget Toy Making Machine/Silicon Making Machine/Hydraulic Hot Press Machine

Exhibition show:

Pop It Fidget Toy Making Machine/Silicon Making Machine/Hydraulic Hot Press Machine

Our service

1. Free technology training: you can come for inspection and training for free.

2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.

3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)

4. Online remote control for software problems, whatspp or wechat for video checking.

Pop It Fidget Toy Making Machine/Silicon Making Machine/Hydraulic Hot Press Machine
